Electrode Wire for Wire Electric Discharge Machine

Electrode Wire for Wire Electric Discharge Machine

Cut Wire or Brass Wire
SBS >> CU65% ,ZN35%
SBG>>> Cu60% , Zn 40%
Application: General purpose

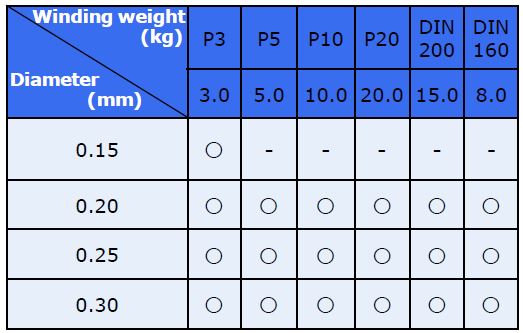

Diameter: 0.10-0.30 mm

Feature
1.Brass wire with stable & High quality
2.Produced  by  Sumitomo's drawing Long History technology
3. Applicable for varios EDM and process method
4.Enables process accuracy  require for long hours and automated operation
5. Keep working continously  longer because surface is clean from the dust

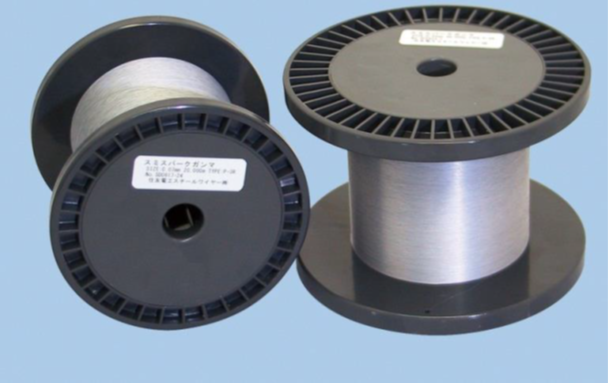

Sumi Spark
Application: High Precision

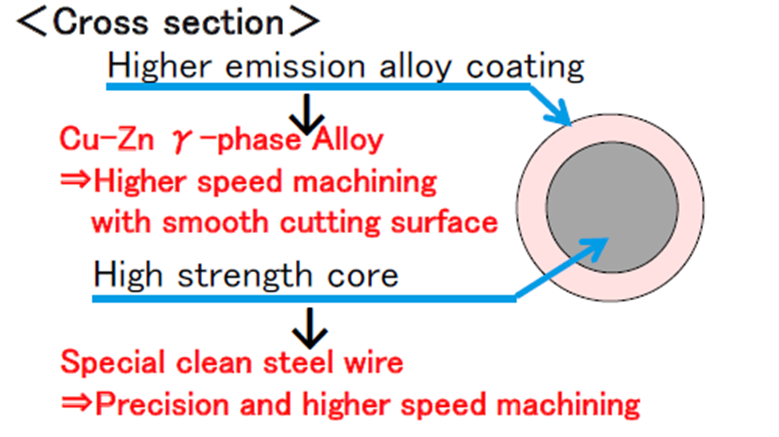

Core Material : High strength piano wire + Brass Y plating.
Diameter: 0.03-0.01 MM.
Feature
High precision wire coated with brass Y layer that contribute to higher discharge on wire surface
Average 30 % higher procees speed
Superior in Speed and Tension
